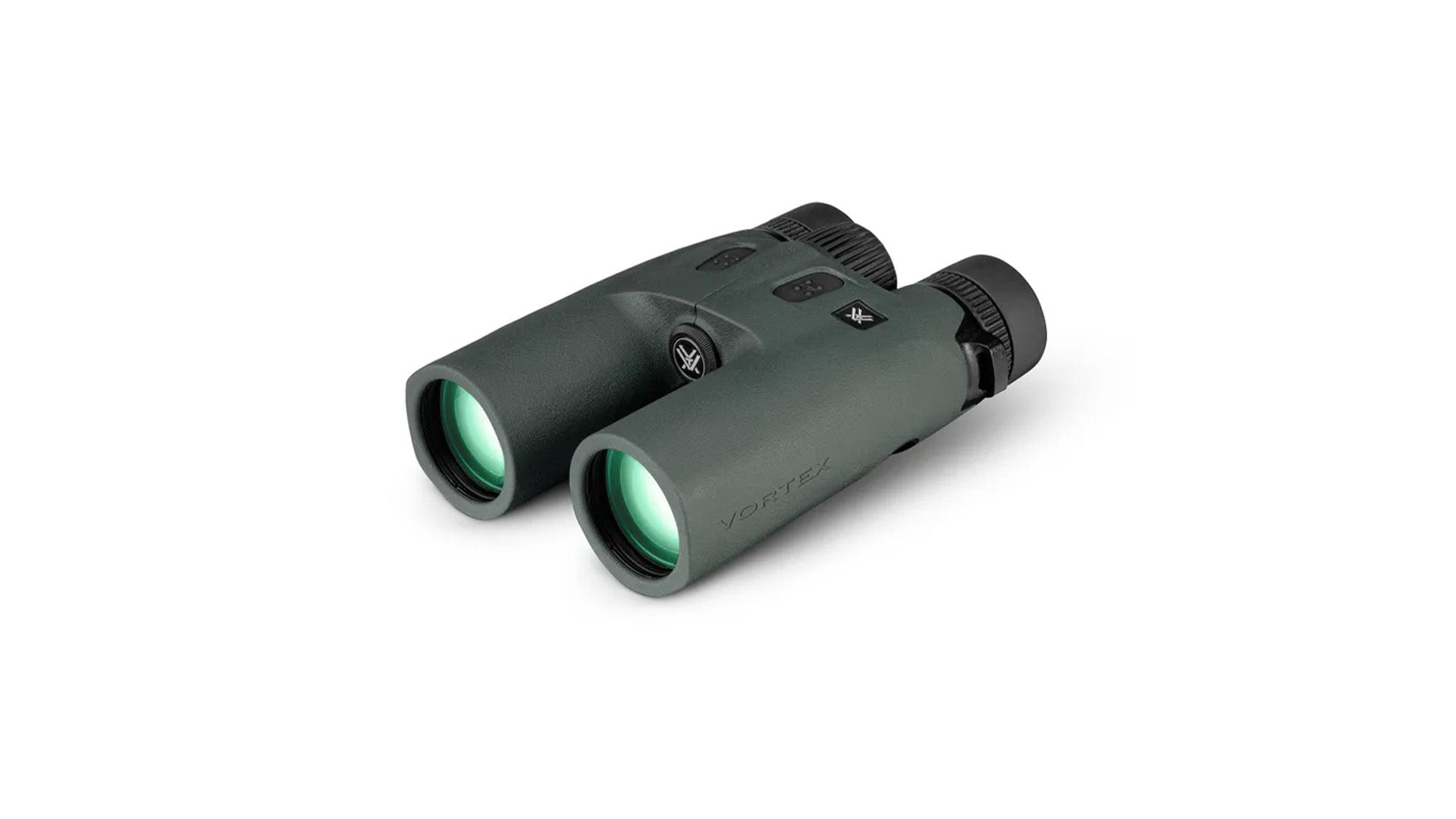

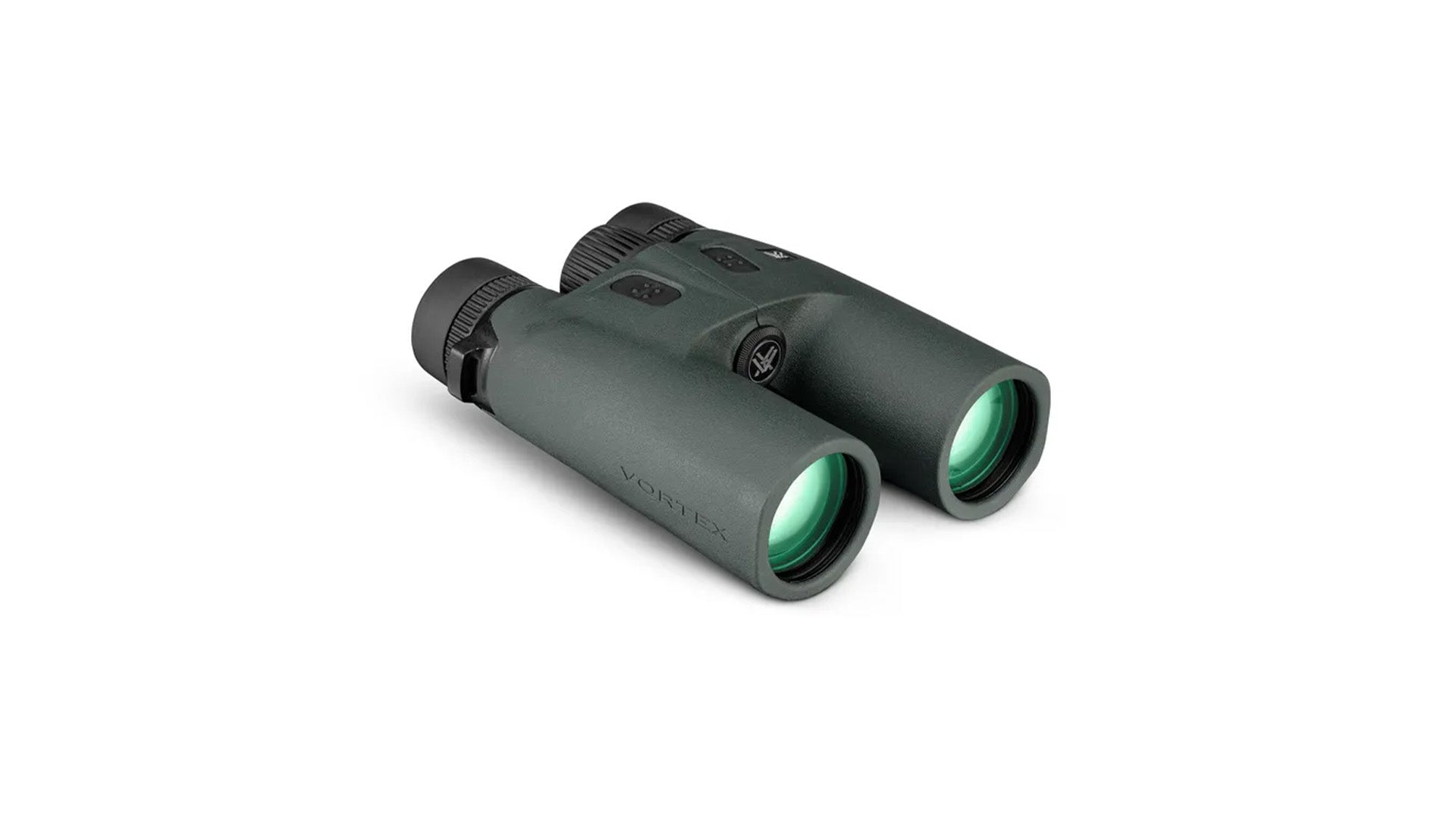

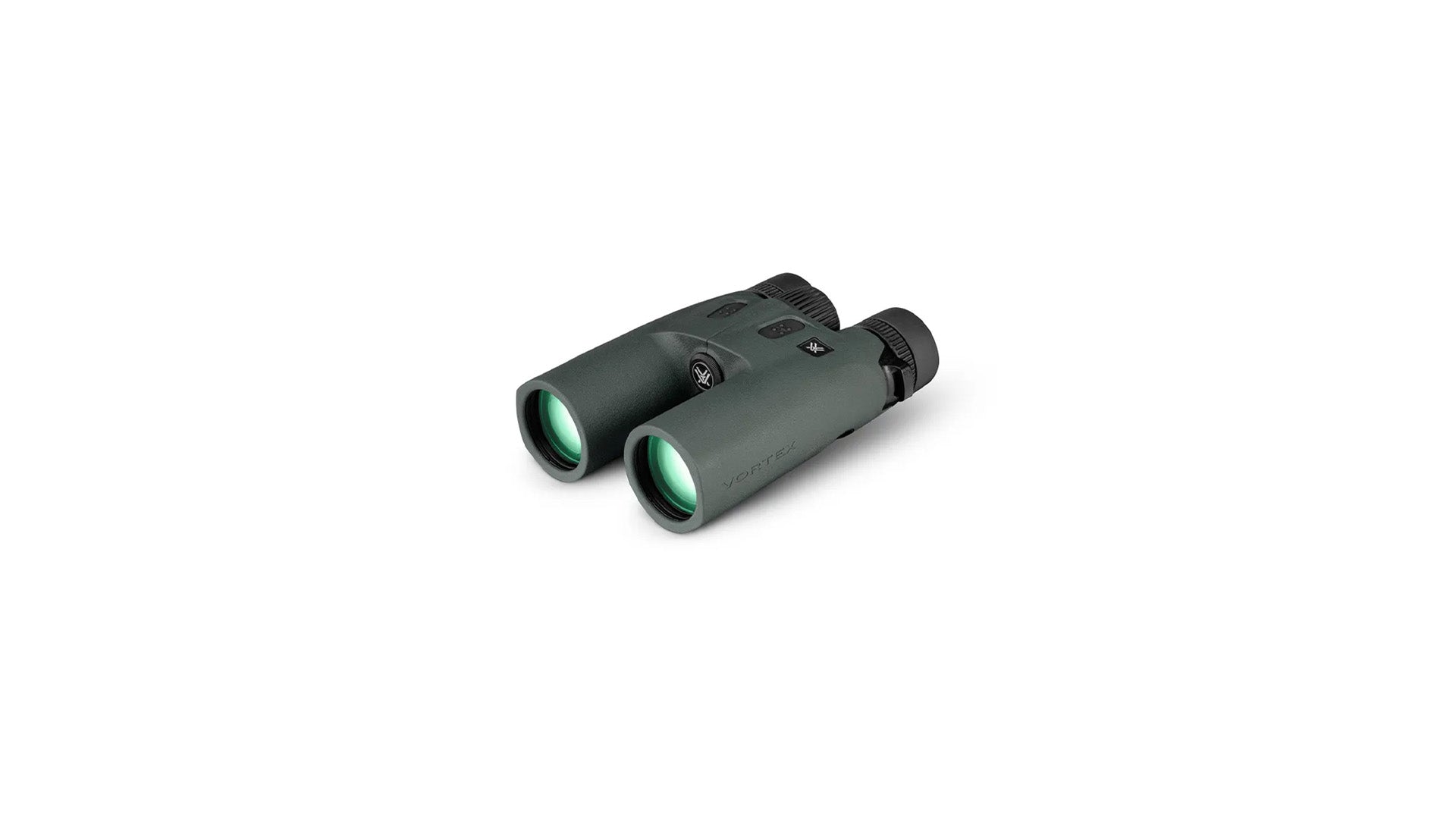

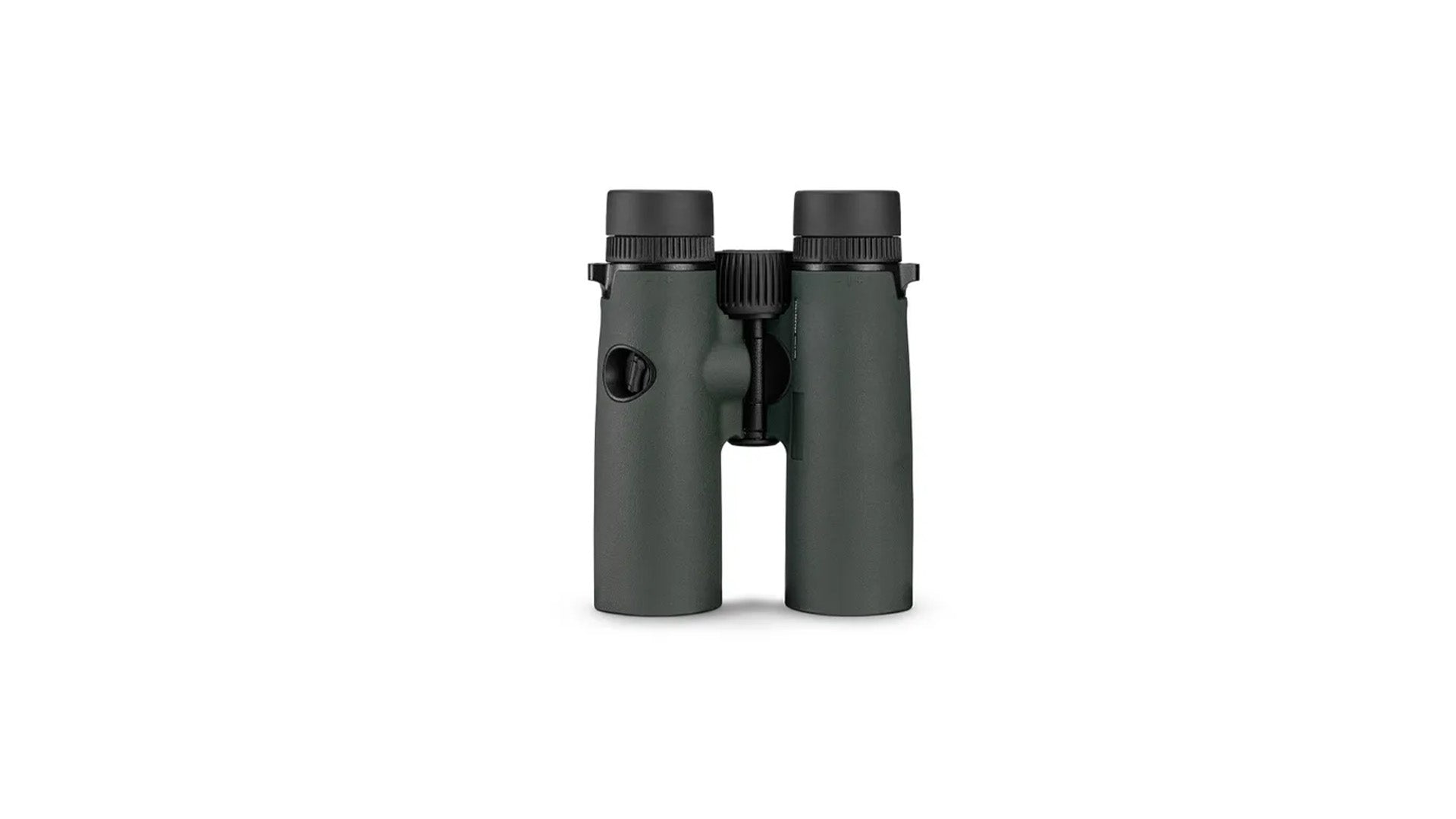

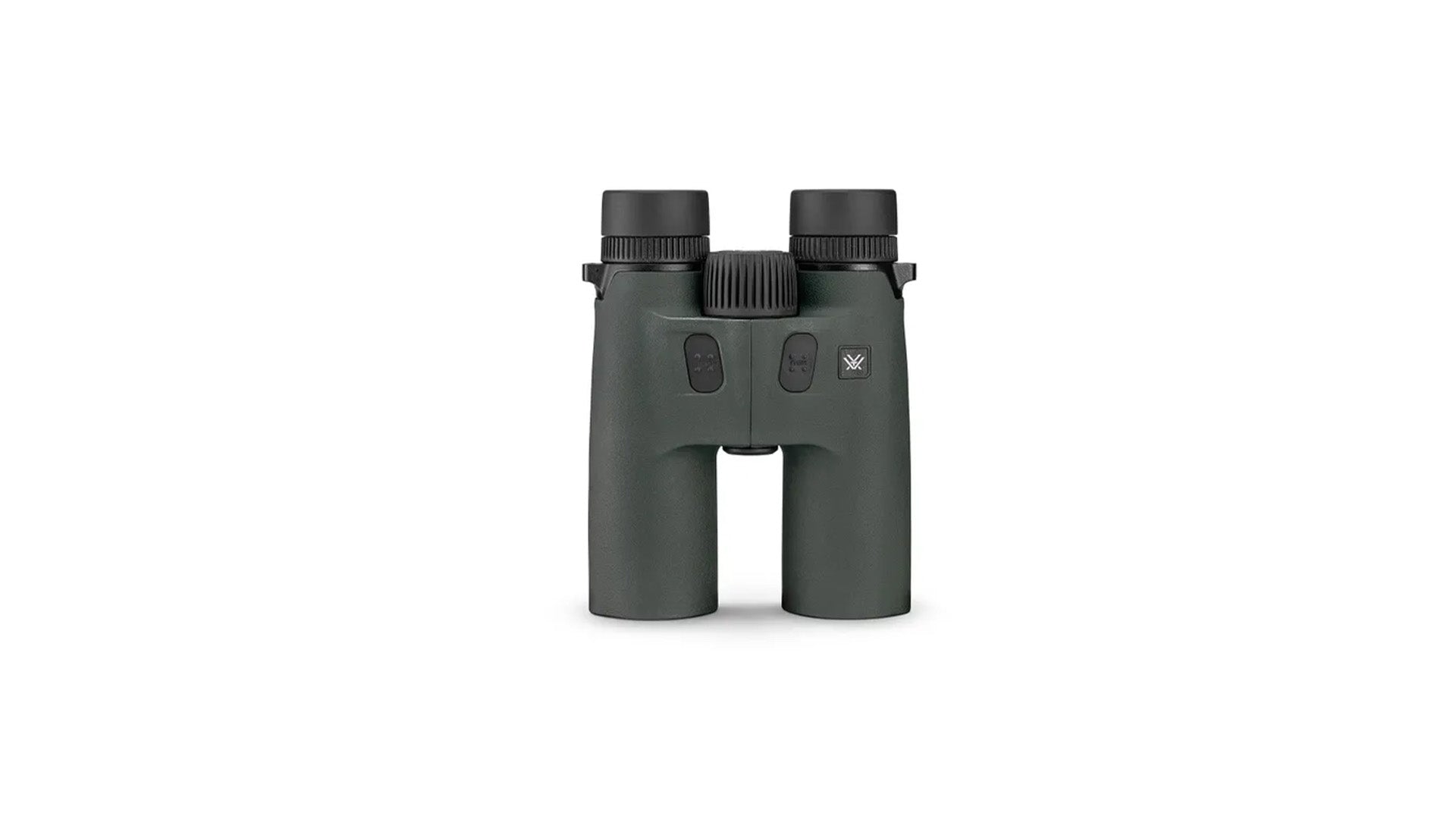

VORTEX RANGER HD 3000 10X42 LASER RANGEFINDER BINOCULARS
Free shipping on orders over $500
Items under $500 qualify for Easy $10 Priority Shipping
Redefine readiness with the Ranger® HD 3000 LRF Binocular. Built for hardworking hunters, its slim design, HD clarity, and precise ranging capability combine to simplify and streamline your gear without compromising performance. In moments where speed and stealth are essential, it’s the tool that keeps you seconds ahead.
| Magnification | 10x |
| Objective Lens Diameter | 42 mm |
| Eye Relief | 17.0mm |
| Angular Field of View | 6.4º |
| Close Focus | 6.0' |
| Interpupillary Distance | 55mm - 74mm |
| Linear Field of View | 335' @ 1000 yds. |
| Range Reflective (yards) | Up to 3000 yds. |
| Range Tree (yards) | Up to 1800 yds. |
| Range Deer (yards) | Up to 1500 yds. |
| Min Range | 6 yds. |
| Height | 6.7" |
| Width | 5.1" |
| Weight | 32.4 oz. |
• Horizontal Component Distance (HCD): Displays the slope angle–compensated distance to the target.
• Line of Sight (LOS): Displays the actual line-of-sight range.
• SCAN Feature: Displays continuous distance readings while panning across a landscape.
TARGET MODES
• Normal Mode: The standard mode providing the target’s range with the strongest range result. Recommended for most situations.
• First Mode: Displays the closest distance when ranging. Ideal for ranging a smaller target in front of other larger or more reflective objects.
• Last Mode: Displays the farthest distance when ranging. Ideal for ranging a specific target behind a group of objects like brush, trees, rocks, etc.
OPTICS & BUILD FEATURES
• HD Optical System: Optimized with select glass elements to deliver exceptional resolution, reduce chromatic aberration, and provide outstanding color fidelity, edge-to-edge sharpness, and light transmission.
• Fully Multi-Coated Lenses: Anti-reflective coatings on all air-to-glass surfaces provide increased light transmission for greater clarity and low-light performance.
• ArmorTek®: Ultra-hard, scratch-resistant coating protects exterior lenses from scratches, oil, and dirt.
• Rubber Armor: Provides a secure, non-slip grip and durable external protection.
• Fogproof: Designed to withstand a wide range of temperatures.
• Tripod Adaptable: Compatible with a tripod adapter for tripod or car window mount use.
• Red OLED Display: Optimized for low light.
• Nitrogen Gas Purged: Gas purged and O-ring sealed for fogproof and waterproof performance in all conditions.
• Ranging Format: Range in yards or meters.
• Waterproof: Designed to withstand harsh weather conditions.
• Shockproof: Designed to withstand high-impact use.
